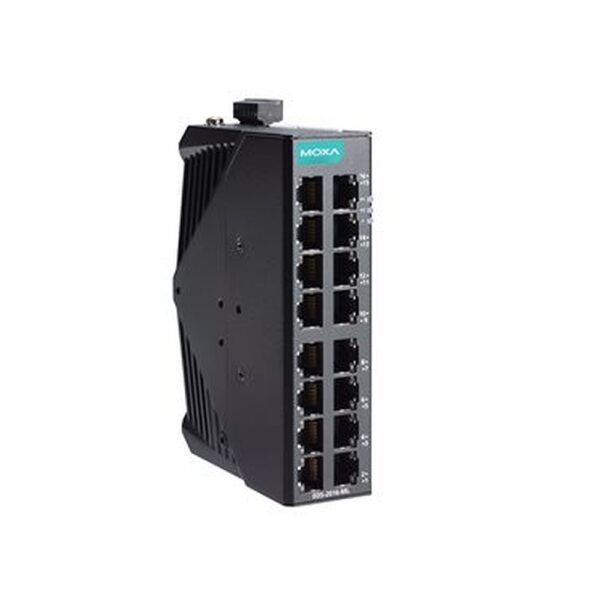

EDS-2016-ML is a high-performance 16-port unmanaged industrial Ethernet switch designed for flexible and reliable network expansion in harsh industrial environments. With copper and fiber connectivity options, redundant power inputs, and rugged IP30 housing, it ensures uninterrupted communication in mission-critical applications.
The EDS-2016-ML is an unmanaged industrial Ethernet switch featuring up to 16 x 10/100 Mbps copper ports and optional 100BaseFX fiber ports with SC/ST connectors. Designed for industrial and shop-floor applications, it provides stable and flexible Ethernet connectivity for automation systems.
This series supports configurable QoS, broadcast storm protection, and port break alarm functions via DIP switches on the outer panel, enabling efficient network traffic management. With redundant 12/24/48 VDC power inputs, DIN-rail mounting, high EMI/EMC protection, and wide operating temperature models (-40°C to 75°C), it ensures reliable field performance.
The EDS-2016-ML Series undergoes 100% burn-in testing and holds industrial certifications including IECEx, C1D2, ATEX Zone 2, DNV GL, and NEMA TS2, making it ideal for Oil & Gas, Power, Marine, ITMS, and factory automation environments.
Engineered for continuous industrial operation, EDS-2016-ML provides stable data transmission even under heavy traffic loads. Its rugged metal enclosure, high EMC immunity, and industrial certifications ensure dependable performance in hazardous and vibration-prone environments.
Designed for plug-and-play deployment, this unmanaged Ethernet switch supports copper and fiber connectivity for scalable industrial networking. DIP-switch-based configuration allows quick adjustment of QoS and protection features without complex setup.
| Type | Details |
|---|---|
| Model | EDS-2016-ML |
| Ports | Up to 16 x 10/100BaseT(X) RJ45 |
| Fiber Ports | 100BaseFX (Multi-mode, SC/ST options) |
| Standards | IEEE 802.3, IEEE 802.3u |
| QoS | Supported (DIP Switch Enabled) |
| Protection | Broadcast Storm Protection, Port Break Alarm |
| Relay Output | Power Failure & Port Alarm Warning |
| Housing | IP30 Rated Metal |
| Mounting | DIN-Rail |
| Power Input | Redundant Dual 12/24/48 VDC |
| Operating Temperature | -10°C to 60°C (Standard) |
| Wide Temp Model | -40°C to 75°C (-T Model) |
| EMI/EMC | Industrial High-Level Protection |
| Certifications | IECEx, C1D2, ATEX Zone 2, DNV GL, NEMA TS2 |
| Installation | Industrial & Hazardous Environments |
| Application Type | Unmanaged Industrial Ethernet Switch |
