The MPC-2240 Series is a 24-inch marine panel computer powered by Intel® Ivy Bridge processors, ECDIS-ready display, fanless design, dual LAN, and marine-grade connectivity.
- Hyderabad, Telangana
- Contact@ntek.in
- +91 81430 78143
The MPC-2240 Series is a 24-inch marine panel computer powered by Intel® Ivy Bridge processors, ECDIS-ready display, fanless design, dual LAN, and marine-grade connectivity.
Nishanth Technologies delivers high-performance marine computing solutions engineered for reliability, compliance, and 24/7 continuous operation across maritime navigation, offshore, and shipboard environments.

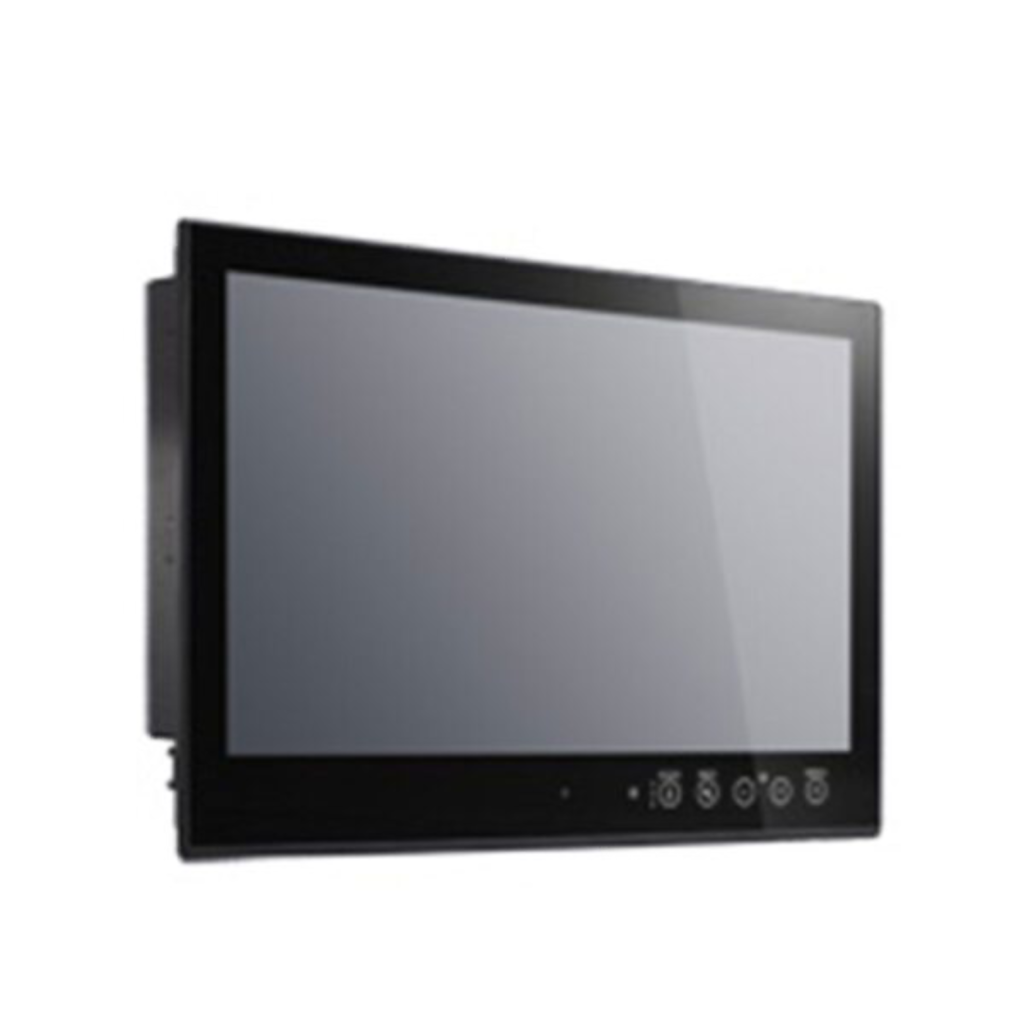

The MPC-2240 Series is a rugged 24-inch marine panel computer designed for demanding maritime and offshore applications. Powered by 3rd Generation Intel® Ivy Bridge processors — including Intel® Celeron® 1047UE (1.40 GHz) and Intel® Core™ i7-2610UE (1.5 GHz) — it delivers dependable computing performance for navigation, monitoring, and vessel control systems.
Built specifically for marine environments, the MPC-2240 features a color-calibrated display compliant with ECDIS standards, ensuring accurate chart visualization and navigation data display. Its fanless architecture enhances long-term reliability by eliminating moving parts and reducing maintenance requirements.
With integrated NMEA 0183, software-selectable RS-232/422/485 serial interfaces, dual Gigabit LAN ports with redundancy, and dual AC/DC power supply units, the MPC-2240 provides seamless connectivity and uninterrupted operation for mission-critical marine systems.
Engineered for continuous 24/7 operation in marine environments, the MPC-2240 Series is built to withstand humidity, vibration, temperature fluctuations, and corrosive conditions commonly found onboard vessels.
The fanless design minimizes mechanical failure risks, while dual power supply support ensures operational continuity in mission-critical navigation and vessel management systems.
The MPC-2240 integrates advanced 3rd Generation Intel® Ivy Bridge processors with 4 GB system memory, offering stable and efficient performance for marine navigation, automation, and monitoring applications.
Its communication architecture includes:
NMEA 0183 for marine navigation systems
Software-selectable serial interfaces (RS-232/422/485)
Dual Gigabit LAN ports with redundancy
VGA and DVI for multi-display configurations
USB 2.0 for peripheral integration
This flexible architecture supports radar systems, ECDIS workstations, vessel monitoring systems, and onboard automation networks.
| Type | Details |
|---|---|
| Display | 24-inch Color-Calibrated LCD (ECDIS Compliant) |
| Processor Options | Intel® Celeron® 1047UE (1.40 GHz) / Intel® Core™ i7-2610UE (1.5 GHz) |
| Memory | 4 GB System Memory |
| Cooling | Fanless Design |
| Serial Ports | RS-232/422/485 (Software Selectable) |
| Marine Interface | NMEA 0183 |
| Ethernet | Dual Gigabit LAN (Network Redundancy Supported) |
| Video Output | VGA, DVI |
| USB | USB 2.0 Ports |
| Audio | Integrated Audio Interface |
| Power Supply | Dual AC/DC Power Inputs |
| Mounting | Marine Panel Mount Design |
⭐ ⭐ ⭐ ⭐ ⭐ (5.0 Rating)
Capt. Rohan Menon – Marine Navigation Officer
“Excellent display clarity for ECDIS applications. Stable performance even during long voyages.”
Vikram Pillai – Offshore Systems Engineer
“Reliable marine connectivity and strong build quality. The dual power supply adds confidence for critical systems.”
Anita Krishnan – Maritime Systems Integrator
“Seamless integration with NMEA devices and ship networks. Perfect for bridge control environments.”
