Nishanth Technologies offers reliable PCI multifunction data acquisition cards designed for accurate measurement, monitoring, and industrial automation control.

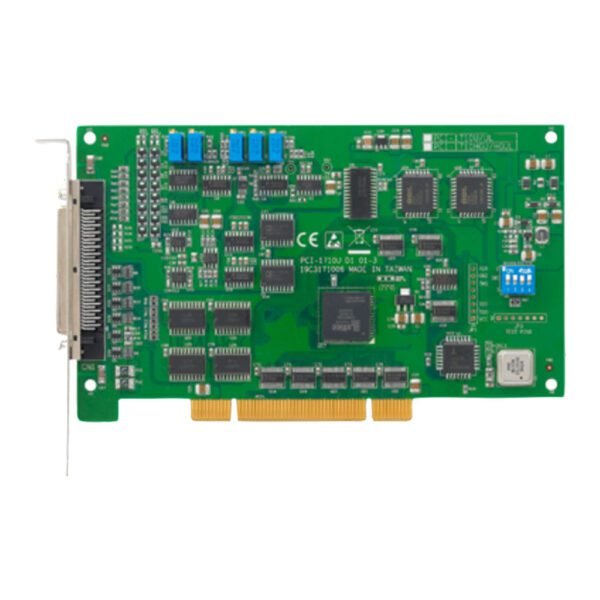

The PCI-1710HGU-DE is a high-performance multifunction PCI card integrating analog input, analog output, digital I/O, and counter/timer functions into one compact and efficient solution.
The PCI-1710HGU-DE is part of the PCI-1710U Series, engineered to deliver stable and precise data acquisition for industrial applications. It features a 12-bit A/D converter with sampling rates up to 100 kS/s.
The card supports 16 single-ended or 8 differential analog inputs, or a combination of both, offering flexible signal configuration. It also includes two 12-bit analog output channels, 16 digital inputs, 16 digital outputs, and an onboard programmable counter.
Automatic channel/gain scanning and a 4,096-sample FIFO buffer ensure reliable, high-speed data acquisition with reduced risk of data loss.
The PCI-1710HGU-DE combines five essential industrial functions:
Analog-to-Digital Conversion (A/D)
Digital-to-Analog Conversion (D/A)
Digital Input
Digital Output
Counter/Timer
This integration reduces system complexity and enhances operational efficiency.
Designed for the PCI bus, the card ensures stable communication and dependable performance. Programmable gain and flexible input modes make it adaptable to various sensor types and voltage levels.
The onboard FIFO buffer supports continuous high-speed acquisition without interruption.
| Specification | Details |
|---|---|
| Analog Input Resolution | 12-bit |
| Sampling Rate | Up to 100 kS/s |
| Analog Inputs | 16 SE / 8 DIFF (Configurable) |
| Analog Outputs | 2 × 12-bit |
| Digital I/O | 16 DI / 16 DO |
| Counter | Onboard Programmable Counter |
| FIFO Memory | 4,096 Samples |
| Interface | PCI Bus |
