Nishanth Technologies provides industrial-grade PCIe digital I/O solutions engineered for reliable performance in high-voltage and mixed-signal environments.

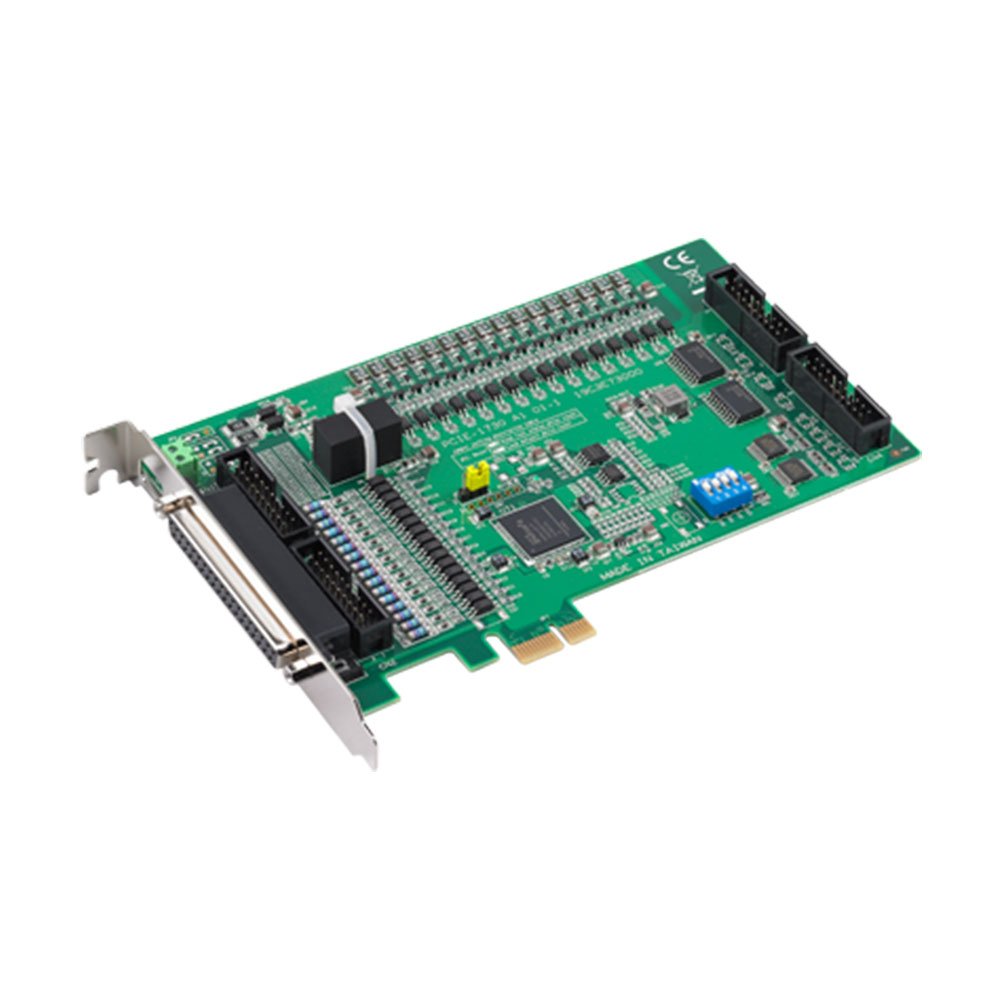

The PCIE-1730-AE is a versatile PCI Express digital I/O card combining 32 TTL channels and 32 isolated channels, delivering flexible connectivity and strong electrical protection for industrial automation systems.
The PCIE-1730-AE provides both isolated and TTL digital I/O channels in a single PCIe card. It features 16 isolated digital inputs and 16 isolated digital outputs with up to 2,500 VDC isolation protection—ideal for high-voltage industrial environments.
In addition, the card includes 32 TTL digital I/O channels (16 DI and 16 DO), offering flexibility for mixed signal-level applications. With strong output driving capacity and interrupt handling capability, it supports reliable real-time control and monitoring.
The PCIE-1730-AE ensures safe operation in harsh industrial environments with 2,500 VDC isolation protection on isolated output channels. This safeguards the host system from voltage surges and electrical noise.
The combination of TTL and isolated channels allows integration of low-level logic signals and high-voltage industrial signals within the same system.
The PCI Express interface enables high-speed communication with industrial PCs and control systems.
Dedicated connectors for TTL and isolated channels simplify wiring and system integration, while interrupt handling enhances responsiveness in event-driven applications.
| Specification | Details |
|---|---|
| Isolated DI/O | 16 DI + 16 DO (32 Channels) |
| TTL DI/O | 16 DI + 16 DO (32 Channels) |
| Isolation Protection | Up to 2,500 VDC (Output Channels) |
| Connectors | 2 × 20-pin (Isolated), 2 × 20-pin (TTL), D-type |
| Interrupt Support | Yes |
| Interface | PCI Express |
