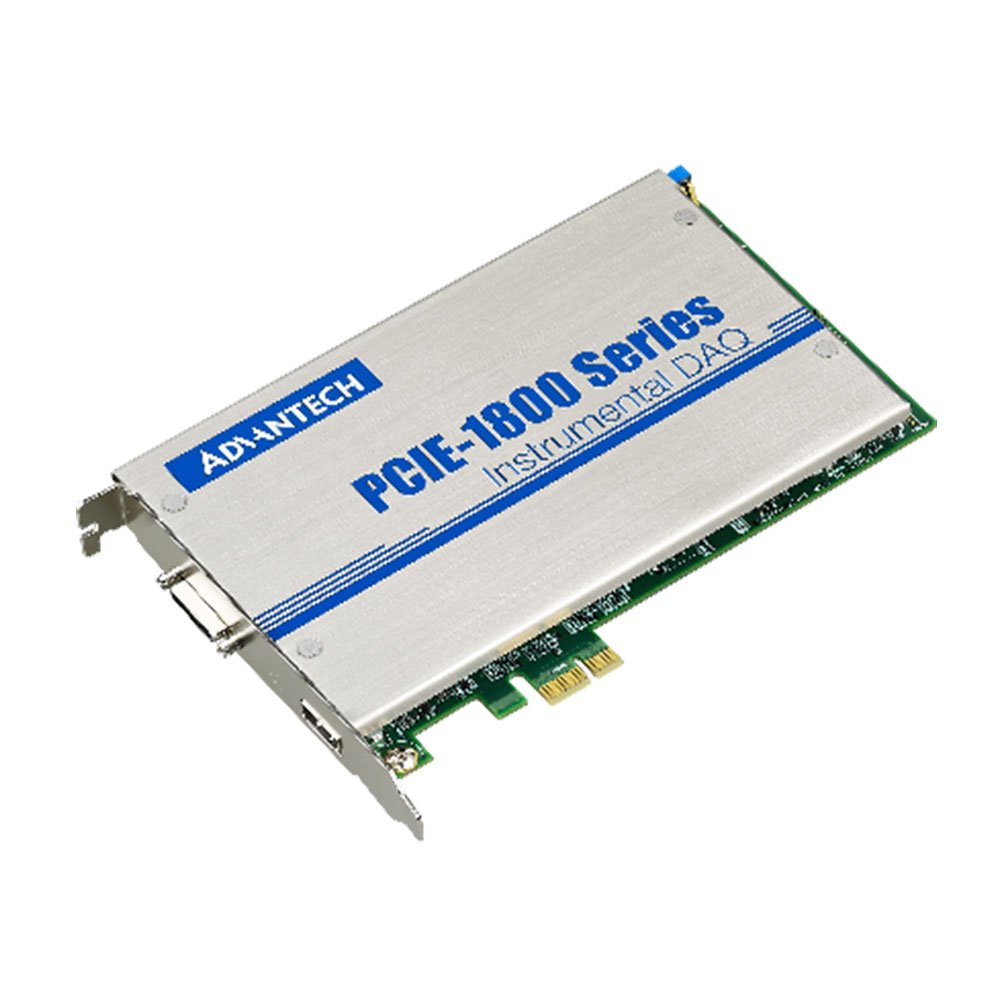

The PCIE-1802-AE is a high-accuracy PCI Express data acquisition (DAQ) card engineered for demanding sound and vibration analysis applications. With 24-bit resolution and simultaneous sampling across 8 channels, it delivers exceptional measurement precision and dynamic performance.
The PCIE-1802-AE is a 24-bit dynamic signal acquisition module specifically developed for sound and vibration monitoring.
It features integrated 4 mA or 10 mA excitation currents for IEPE sensors such as accelerometers and microphones, eliminating the need for external signal conditioning equipment. With built-in anti-aliasing filters and a wide input range, it ensures highly accurate and noise-free signal capture.
Designed for research laboratories, industrial testing, and condition monitoring systems, the card provides high dynamic range and synchronized multi-channel data acquisition.
The PCIE-1802-AE delivers 24-bit resolution with a 115 dB dynamic range, ensuring highly detailed signal acquisition for precise sound and vibration analysis.
Simultaneous sampling across all 8 channels prevents phase mismatch, making it ideal for modal testing, structural analysis, and acoustic measurements.
The PCI Express interface enables high-speed data transfer and seamless integration with industrial PCs and workstation platforms.
Built-in IEPE excitation allows direct connection to accelerometers and microphones, reducing external hardware requirements and simplifying system setup.
| Specification | Details |
|---|---|
| Analog Inputs | 8 (Simultaneous Sampling) |
| Resolution | 24-bit ADC |
| Sampling Rate | Up to 216 kS/s |
| Dynamic Range | 115 dB |
| Input Range | ±0.2 V to ±10 V |
| IEPE Excitation | 4 mA / 10 mA (Software Configurable) |
| Interface | PCI Express |
| Calibration | Full Auto-Calibration |
