RDACS is a high-performance Rugged Data Acquisition & Control System specifically designed for Health Status Monitoring of Surface-to-Air Missile systems. Engineered for deployment in harsh and mobile defense environments, it ensures precise data acquisition, real-time control, and reliable performance under extreme vibration, shock, and EMI/EMC conditions.
RDACS from Nishanth Technologies is a ruggedized, rack-mountable data acquisition and control platform built on an Intel-based 3U Compact PCI architecture. Designed for wheeled vehicle applications and high-vibration environments, the system offers extensive I/O capabilities and customizable expansion through Euro boards and Compact PCI modules.
The system consists of:

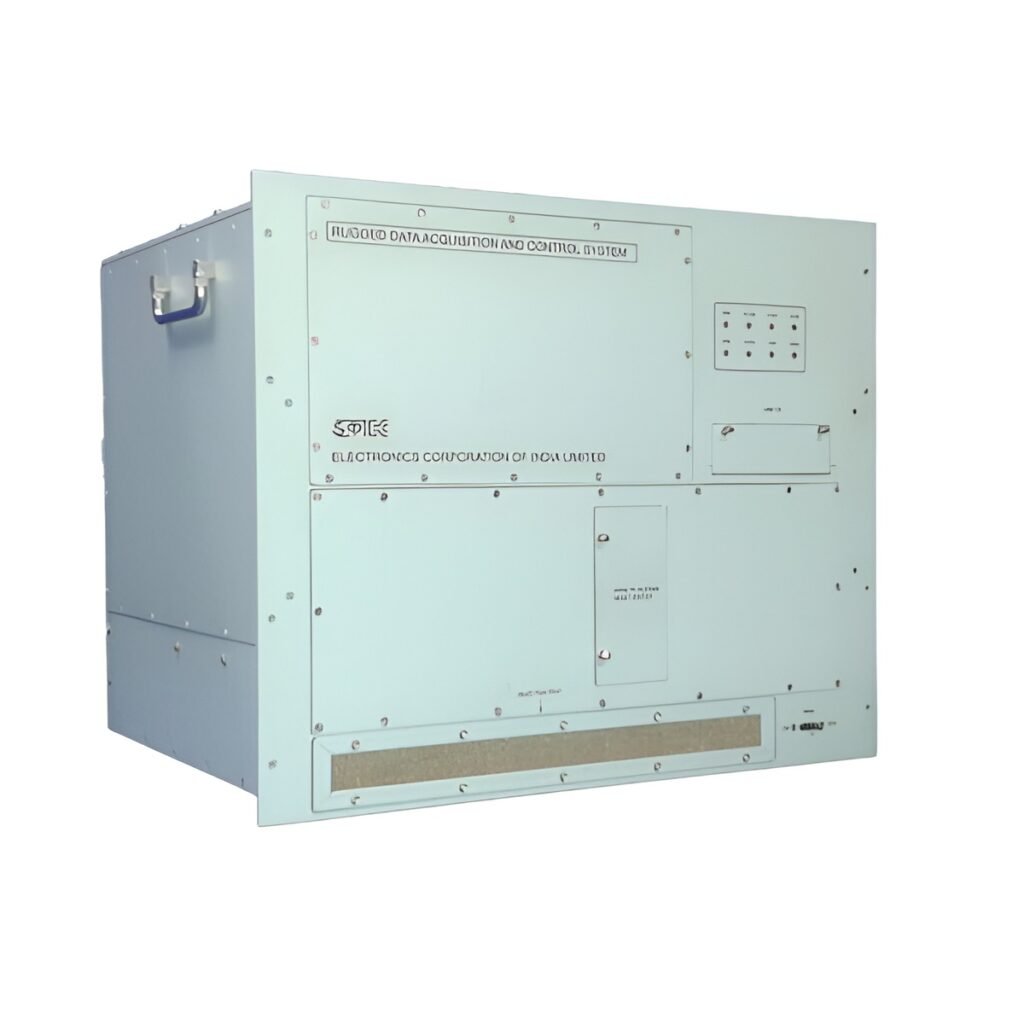

19” Rack Mountable 9U Control Unit
3U Foldable 19” LCD & Keyboard Unit
It complies with stringent environmental and EMI/EMC standards including JSS-55555 and MIL-STD-461, making it suitable for defense-grade applications.
RDACS is engineered for high-reliability defense operations where system failure is not an option. The machined aluminium HE-30 chassis and Compact PCI card cage provide structural strength to withstand high vibration and mechanical stress.
Its rugged architecture ensures:
Stable operation in mobile defense platforms
High data integrity under EMI/EMC exposure
Accurate signal acquisition in noisy environments
Continuous monitoring with minimal downtime
The controller is built on an Intel platform using 3U Compact PCI architecture, providing modular scalability and rich I/O expandability. Custom Euro boards enhance signal conditioning and load control capabilities.
The system supports:
High-channel-density data acquisition
Real-time control processing
Modular expansion for future upgrades
Integration with specialized defense subsystems
| Type | Details |
|---|---|
| System Type | Rugged Data Acquisition & Control System |
| Control Unit | 19” Rack Mountable, 9U Height |
| Display Unit | 3U Foldable 19” LCD & Keyboard |
| Architecture | Intel Platform, 3U Compact PCI |
| Analog Inputs | 32 Channels |
| Analog Outputs | 12 Channels |
| Isolated Digital Inputs | 32 Channels |
| Isolated Digital Outputs | 32 Channels |
| Digital I/O | 144 Channels |
| Serial Ports | 4 x RS-232/422, 2 x RS-422 |
| USB Ports | 4 x USB |
| Ethernet | 2 x Ethernet Ports |
| GPIB | 1 Port |
| Custom Boards | 4:1 AI Attenuation Board, 1A Solid-State Relay (SSR) Boards |
| Chassis Material | Machined Aluminium HE-30 |
| Application Suitability | Wheeled Vehicle Deployment |
| Environmental Compliance | JSS-55555 |
| EMI/EMC Compliance | MIL-STD-461 |
| Construction | Heavy-duty Compact PCI & Euro Card Cage |
