Nishanth Technologies delivers high-precision industrial USB data acquisition solutions engineered for accurate measurement, control, and monitoring across automation systems, laboratory environments, and production facilities.

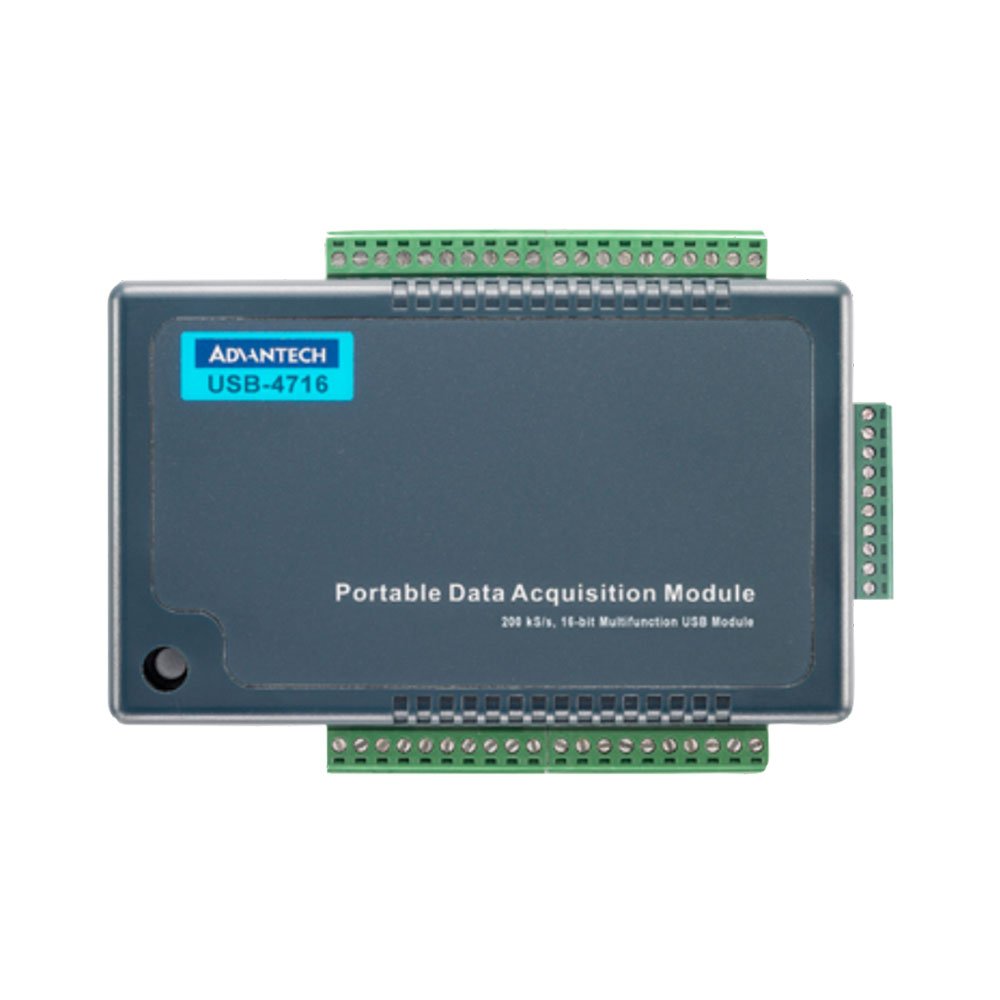

The USB-4716 is a high-speed multifunction USB data acquisition module featuring 16 analog input channels with 16-bit resolution and sampling rates up to 200 kS/s, designed for demanding measurement and industrial automation applications.
The USB-4716 is part of the USB-4700 Series true plug-and-play data acquisition modules. There is no need to open the computer chassis — simply connect the module via USB and begin acquiring data instantly.
Designed for high-speed and high-accuracy measurement tasks, the USB-4716 provides 16 analog input channels with 16-bit resolution and a maximum sampling rate of 200 kS/s. In addition to analog inputs, it includes 8 digital inputs, 8 digital outputs, 2 analog output channels, and one 32-bit counter for multifunction control capability.
The USB-4716 delivers high-speed and high-accuracy data acquisition for demanding industrial and laboratory environments. Its 16-bit resolution ensures precise signal measurement, while the 200 kS/s sampling rate supports fast-changing signal capture.
The bus-powered design simplifies deployment, and the rugged construction ensures stable operation in continuous industrial use.
The USB-4716 operates using USB 2.0 interface standards, enabling high-speed communication with PCs and embedded systems.
It integrates analog input, digital I/O, analog output, and counter functionality into a single compact module. This multifunction architecture allows flexible deployment in automation, test, and control systems.
| Type | Details |
|---|---|
| Model | USB-4751 |
| Digital I/O Channels | 48-ch Digital I/O |
| Digital Lines | 48 TTL I/O Lines |
| USB Compatibility | USB 1.1 / 2.0 |
| Emulation | 8255 PPI Mode 0 |
| Interrupt Support | Yes |
| Timer/Counter | Interrupt Capability Supported |
| Contact Support | Dry & Wet Contact |
| Header | 50-pin Opto-22 Compatible |
| Mounting | DIN-Rail Mount |
| Power | USB Bus-Powered |
| Port Type | Lockable USB Cable Included |
