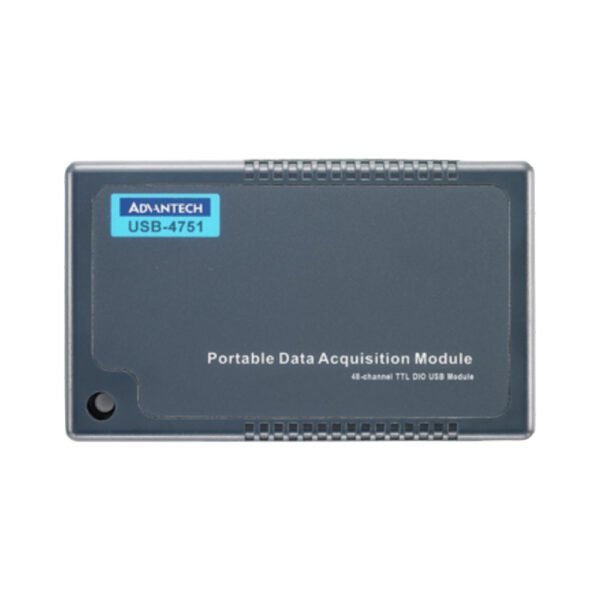

The USB-4751 is a high-performance 48-channel digital I/O USB module designed for industrial control and automation applications. It offers stable data acquisition, enhanced driving capacity, and flexible digital interfacing for reliable system integration.
The USB-4751 is part of the USB-4700 Series true plug-and-play data acquisition modules. It eliminates the need to open computer chassis for installation — simply connect via USB and begin data acquisition instantly.
Designed for industrial environments, it features buffered circuits for higher driving capacity than traditional 8255-based devices and supports both dry and wet contact inputs. The module emulates Mode 0 of the 8255 PPI and includes timer/counter interrupt capability for advanced control applications.
Engineered for stable industrial operation, the USB-4751 provides reliable digital signal acquisition and control. Its buffered circuitry enhances output drive capability, while interrupt support ensures responsive system performance.
The USB bus-powered design eliminates additional wiring complexity, and the lockable USB connector ensures secure connections in vibration-prone industrial environments.
The USB-4751 operates using USB 1.1/2.0 interface standards and emulates 8255 PPI Mode 0 architecture for flexible digital I/O configuration.
It integrates seamlessly with industrial PCs and embedded systems, offering direct TTL-level digital input/output connectivity. The module supports timer/counter interrupt functionality and Opto-22 compatible headers for extended industrial compatibility.
| Type | Details |
|---|---|
| Model | USB-4751 |
| Digital I/O Channels | 48-ch Digital I/O |
| Digital Lines | 48 TTL I/O Lines |
| USB Compatibility | USB 1.1 / 2.0 |
| Emulation | 8255 PPI Mode 0 |
| Interrupt Support | Yes |
| Timer/Counter | Interrupt Capability Supported |
| Contact Support | Dry & Wet Contact |
| Header | 50-pin Opto-22 Compatible |
| Mounting | DIN-Rail Mount |
| Power | USB Bus-Powered |
| Port Type | Lockable USB Cable Included |
